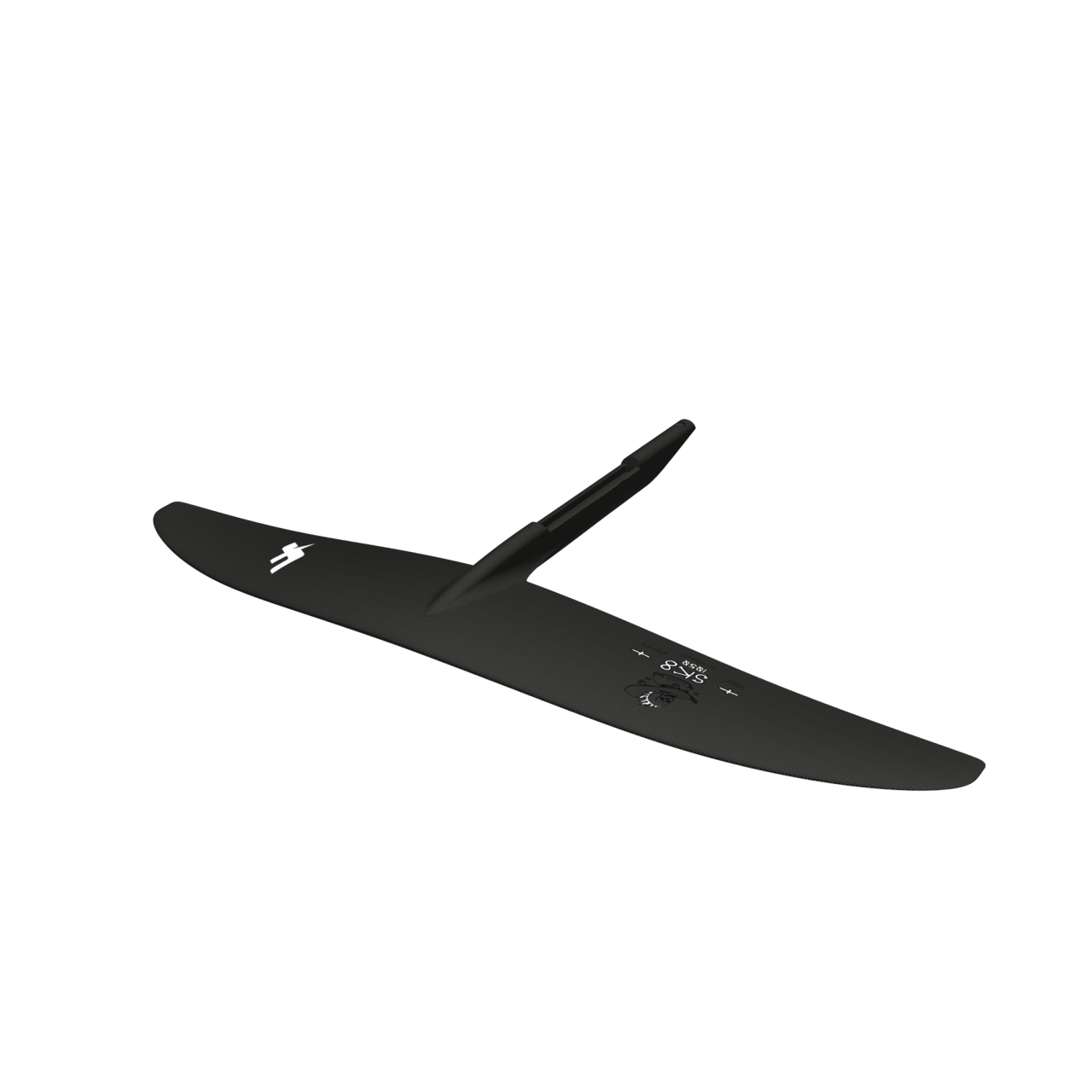

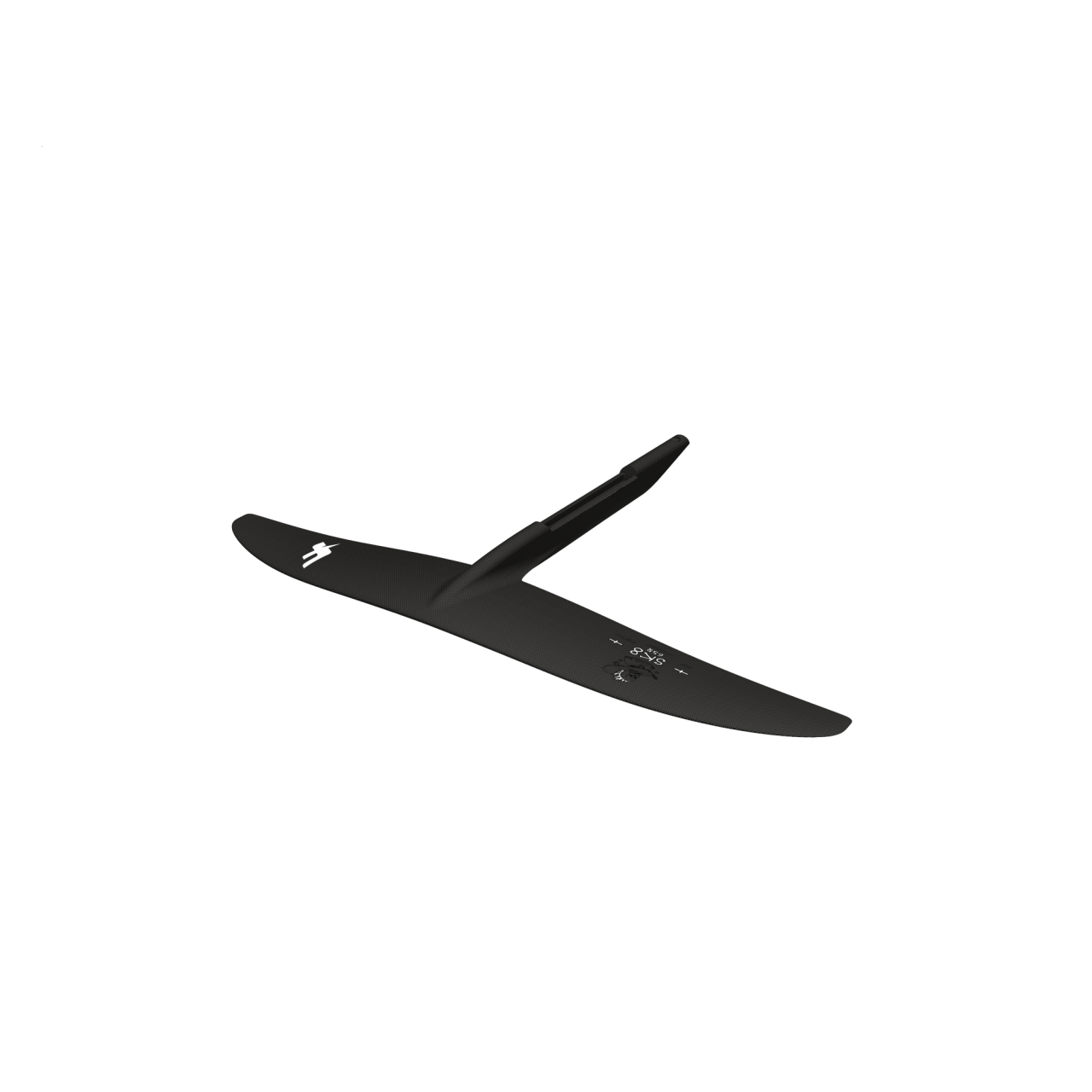

F-One FW SK8 HM CARBON



F-One FW SK8 HM CARBON

Ref. 77237-0151 / 77237-0152 / 77237-0153 / 77237-0154 / 77237-0155 / 77237-0156 / 77237-0157
Sizes: 550cm² / 650 cm² / 750 cm² / 850 cm² / 950 cm² / 1050 cm² / 1150 cm²

CARVING IS NOT A CRIME

Get in your flow, feel every turn and be ready to shred like never before with the SK8. Designed for surfing, this foil doesn’t just turn. It carves. Bringing control, maneuverability and pure glide, the SK8 lets you draw dreamy lines and takes your surf to the next level.

  • Aspect Ratio: 8.0
  • Its outline makes it easy to turn and push hard during fast and controlled carves
  • The subtle design of the lobe between maneuverability and glide allows to surf freely while maintaining efficient pumping
  • The wingtips’ design is made to hit the foam and breach the wingtip without turbulence or cavitation.
  • Its unique speed makes it a perfect foil for surfing from offshore swells to the shorebreak with a wing.
  • Our monobloc construction guarantees rigidity, durability, and extraordinary glide.



The SK8 has been designed to surf.
Its overall shape provides a fine balance between glide and maneuverability, which allows the user to tear a wave apart and then pump back to the peak effortlessly.

It doesn’t just turn. It carves.
Maneuverability is nothing without power, speed and control. Lay into turns with ease and speed, push through the carve and see how the SK8 holds a steady line and delivers even more speed.

It is meant to stay in the pocket.
With specific wingtips design, the SK8 is able to hit white water without too many turbulences, allowing surf-style turns and breaching pretty much any part of the foil.

Carve, pump, fly.
Take the SK8 for a wing ride, and you’ll feel a fast, easy-to-go-upwind foil that you can surf all the way from the offshore swell until the impact zone.

Built using the Monobloc structure with pre-preg carbon, the foils are both very light and strong. This setup brings improved load transmission and better stiffness throughout the different parts for maximum control. The High Modulus Carbon fiber layup leads to even more rigidity and dependability that will propel you to incredible performances in each session. The TITAN connection allows to plug in either an aluminum or carbon mast.

SIZE RANGE

AREA (cm²) SPAN (cm) ASPECT RATIO WEIGHT (kg)
SK8 HM CARBON 550 550 67 8,2 0,78
SK8 HM CARBON 650 650 72,5 8,1 0,89
SK8 HM CARBON 750 750 77,5 8 1,03
SK8 HM CARBON 850 850 82,5 8 1,09
SK8 HM CARBON 950 950 87 8 1.20
SK8 HM CARBON 1050 1050 91.5 8 1.35
SK8 HM CARBON 1150 1150 96 8 1.46



TECHNOLOGY


HM
The High Modulus Carbon fiber layup is 1.5x stiffer than the regular carbon fiber used in other constructions. The percentage of high modulus fiber has been carefully adjusted to obtain the best stiffness in both bending and torsion while keeping enough comfort for any kind of practice.




MONOBLOC FRONT WING
Having a stiff and solid assembly between all the parts of the foil is key to making it perform at its best as well as easy to handle.
The connection of the front wing with the fuselage is highly stressed and loaded, so it is one of the critical areas of the assembly in terms of structures.
The Monobloc front wings are molded together with the fuselage in one shot, thereby removing the connection and the chances for unwanted and parasitic movements.
The structural fibers of the fuselage are spread into the wing to achieve the smoothest and lightest connection.
It is also incredibly stiff and provides absolute control at all times, with the foil responding perfectly to all of the riders’ input.
When the overall dimensions are too large for convenient transportation, a connection is set into the fuselage, behind the mast where the loads are smaller.






TITAN CONNECTION
The TITAN connection enables a very stiff and direct connection between two parts, locking efficiently any movement in all directions.
Its format is compact which is hydrodynamically efficient and very easy to use, assemble and disassemble.
