F-One Phantom Carbon Front wing



F-One Phantom Carbon Front wing

Ref. 77227-0110 | 77207-0106 | 77207-0107 | 77207-0108 | 77207-0109

The foils of the Phantom line are designed to glide effortlessly when pumping or connecting waves and then prove very agile and precise when surfing.

  • Superior Glide & Ultra Stable
  • Downwind and Wingfoil Machine
  • Monobloc Carbon Construction

Phantom Carbon Range :

  • The Phantom 940 is a speed concentrate that allows radical carves and a surprisingly efficient pumping. It is aimed at an experienced and demanding rider, its potential is to be exploited in wing or in waves >1m.
  • The Phantom 1080 is a remarkably efficient foil that remains accessible despite its small surface area. It is surprisingly easy to use, but reveals incredible performance in speed, carving and pumping when needed.
  • The Phantom 1280 provides a versatile program similar to the 1480, but with a bit more power: It carves better, goes faster, and is used in more powerful waves. It is also suitable for lighter riders (<70kg).
  • The Phantom 1480 combines efficiency and accessibility. Its lift allows you to glide endlessly while having fun thanks to its incredible maneuverability. It is an ultra versatile kite: surfing in waves <1m50, downwind, wing, dockstarts, wakefoil… It does everything, and well.
  • The Phantom 1780 offers the highest lift of the range. It allows a very versatile program similar to the 1480, but more adapted to heavier riders (>85kg), or SUPs.

MONOBLOC STRUCTURE

Having a stiff and solid assembly between all the parts of the foil, is key to making it perform at its best as well as easy to handle.

The connection of the front wing with the fuselage is highly stressed and loaded, it is one of the critical area of the assembly in terms of structures.

The MONOBLOC wings are molded together with the fuselage in one shot, thereby removing the connection and the chances for unwanted and parasitic movements.

The structural fibers of the fuselage are spread into the wing to achieve the most natural, sound and light connection.

It is also incredibly stiff and provide absolute control at all times, with the foil responding perfectly to all of the riders input.

When the overall dimensions are too large for convenient transportation, a connection is set into the fuselage, behind the mast where the loads are smaller.



PRE-PREG

With Pre-preg fabrics, the carbon fiber is directly impregnated with epoxy resin by its manufacturer; this guarantees a perfect ratio between epoxy and carbon, and represents the highest quality process.

Quality control is much better and so is the working environment for the people building our foils. Pre-Preg fabrics offer the lightest weight with the best mechanical properties of carbon fiber.

TITAN CONNECTION

The TITAN connection enables a very stiff and direct connection between two parts, locking efficiently any movement in all directions.
Its format is compact which is hydrodynamically efficient and very easy to use, assemble and disassemble.


PHANTOM CARBON 940 Area: 940 cm²
Span: 78 cm
Aspect Ratio: 6.5
Fuselage Carbon : X-short

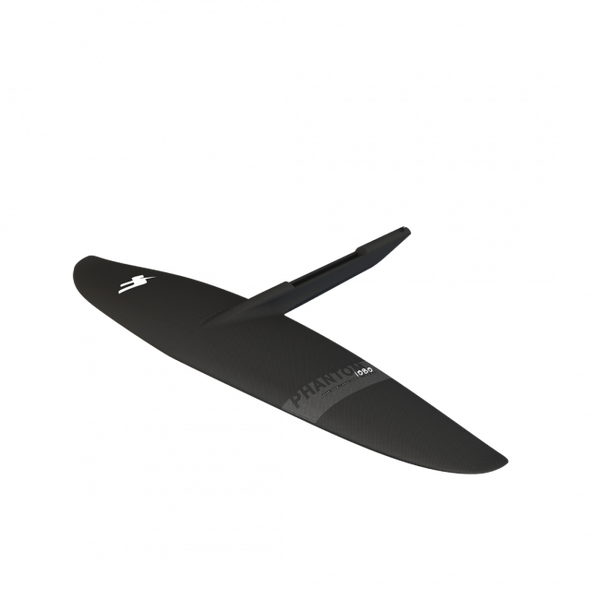

 PHANTOM CARBON 1080

Area: 1080 cm²

Span: 80 cm

Aspect Ratio: 5.9

Weight: 1.15kg (wing only)

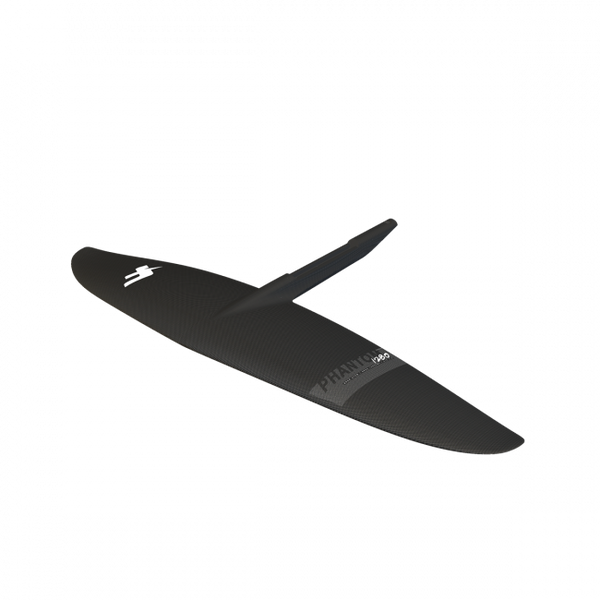

PHANTOM CARBON 1280

Area: 1280 cm²

Span: 870 cm

Aspect Ratio: 5.9

Weight: 1.37 kg (wing only)

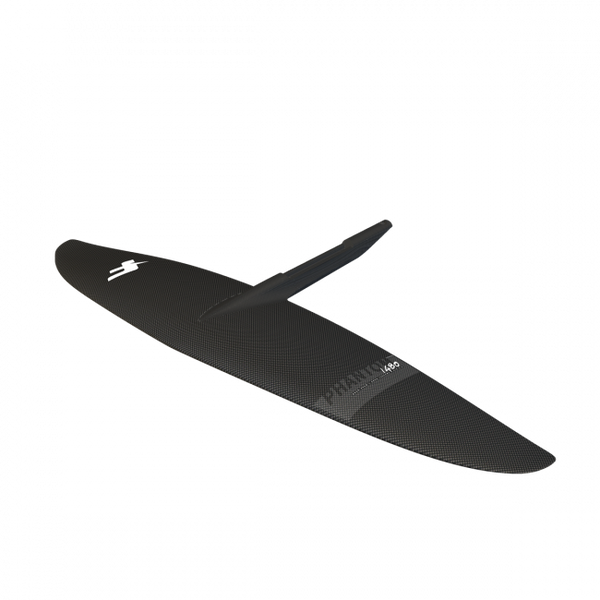

PHANTOM CARBON 1480

Area: 1480 cm²

Span: 960 cm

Aspect Ratio: 6.2

Weight: 1.62 kg (wing only)

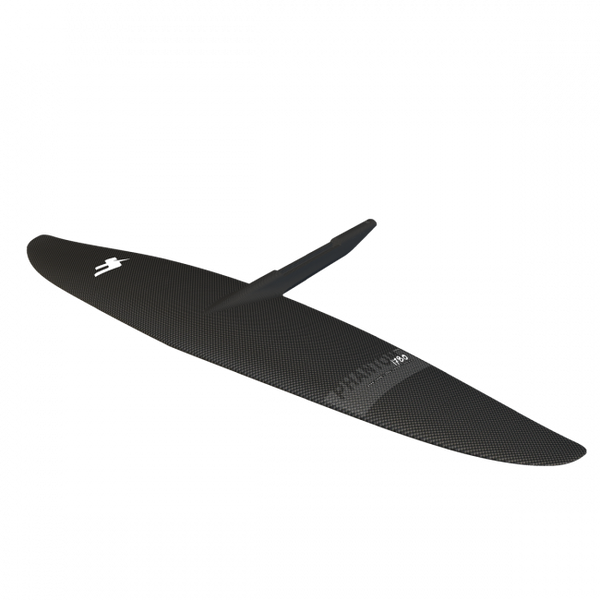

PHANTOM CARBON 1780

Area: 1780 cm²

Span: 1070 cm

Aspect Ratio: 6.4

Weight: 1.90 kg (wing only)
